Product Series

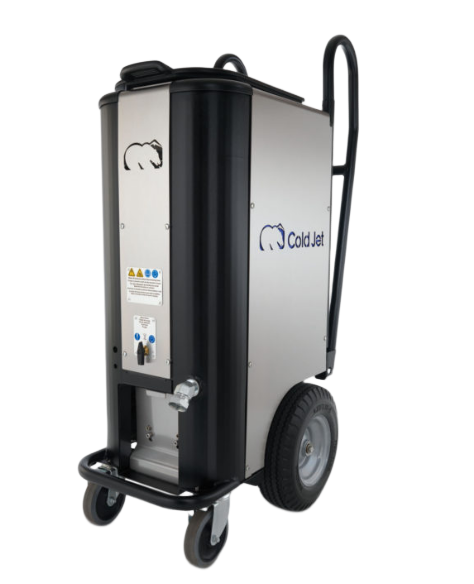

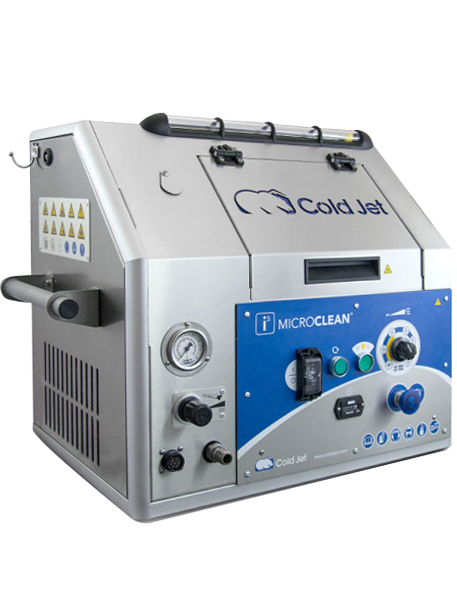

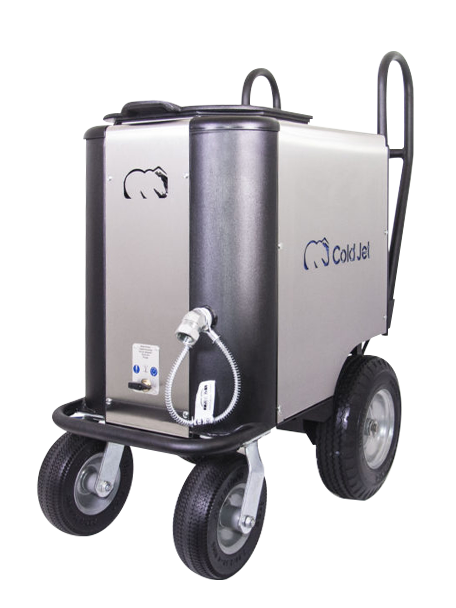

STMC provides various models of ULTRA SHOT® cryogenic deflashing machines; Cold Jet® dry ice blasting machine; machine spare parts and blasting media of all kinds.

STMC also provides developing & customize automatic control programs, configuration communication and human-machine dialogue interface according to clients needs.

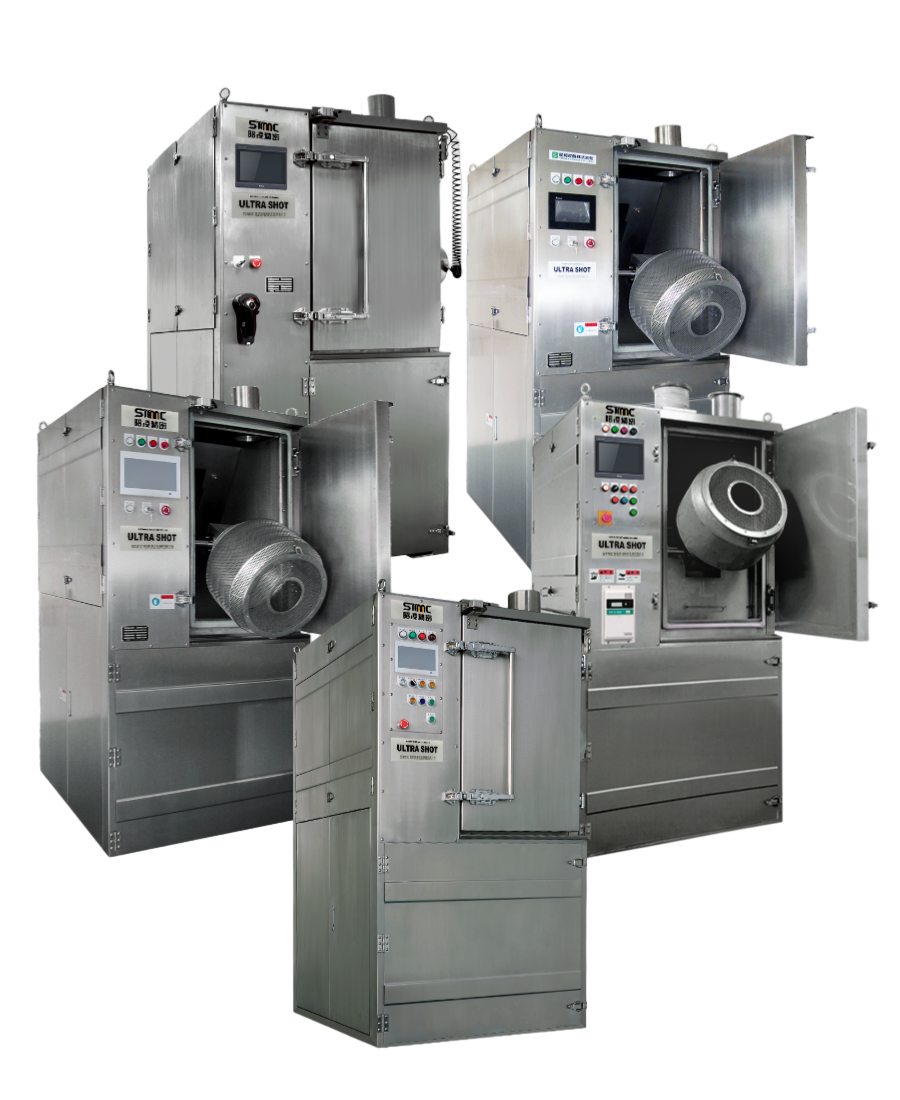

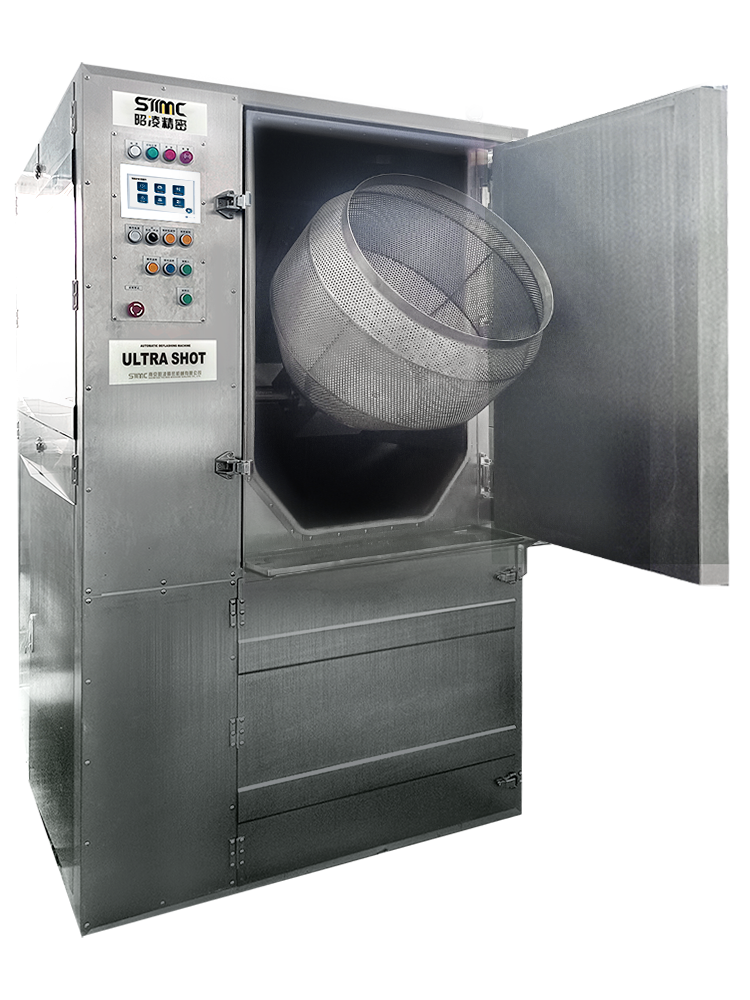

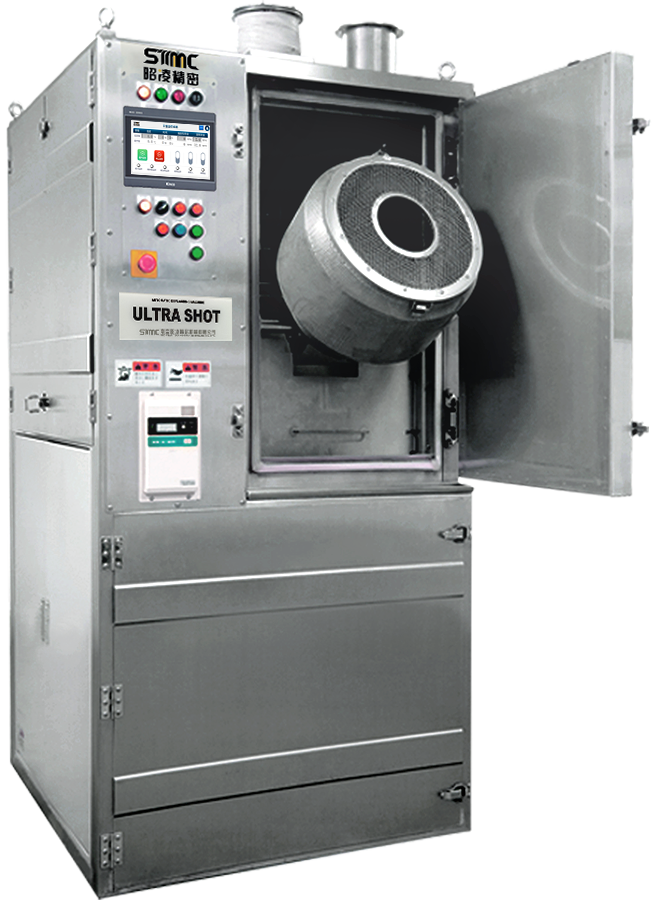

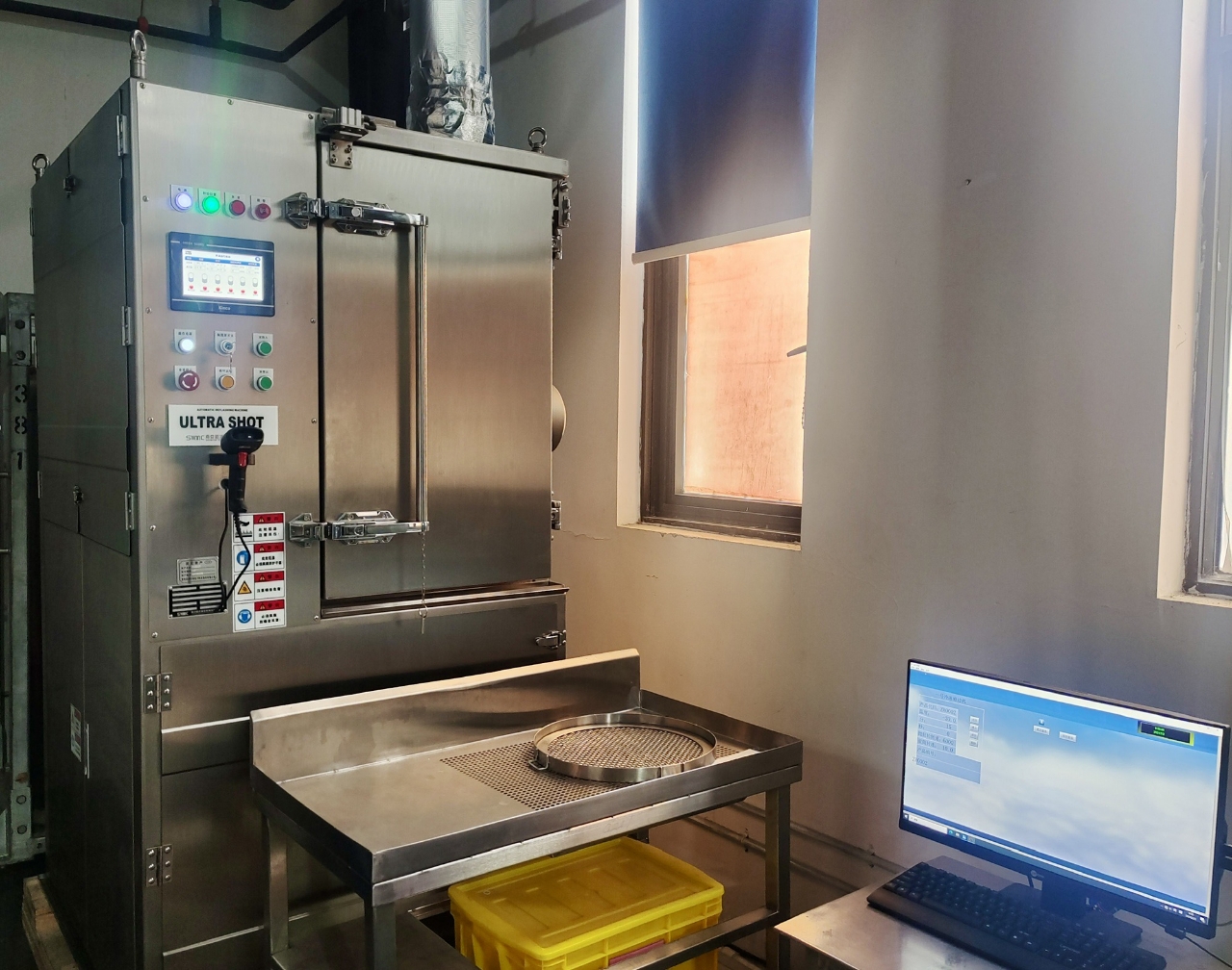

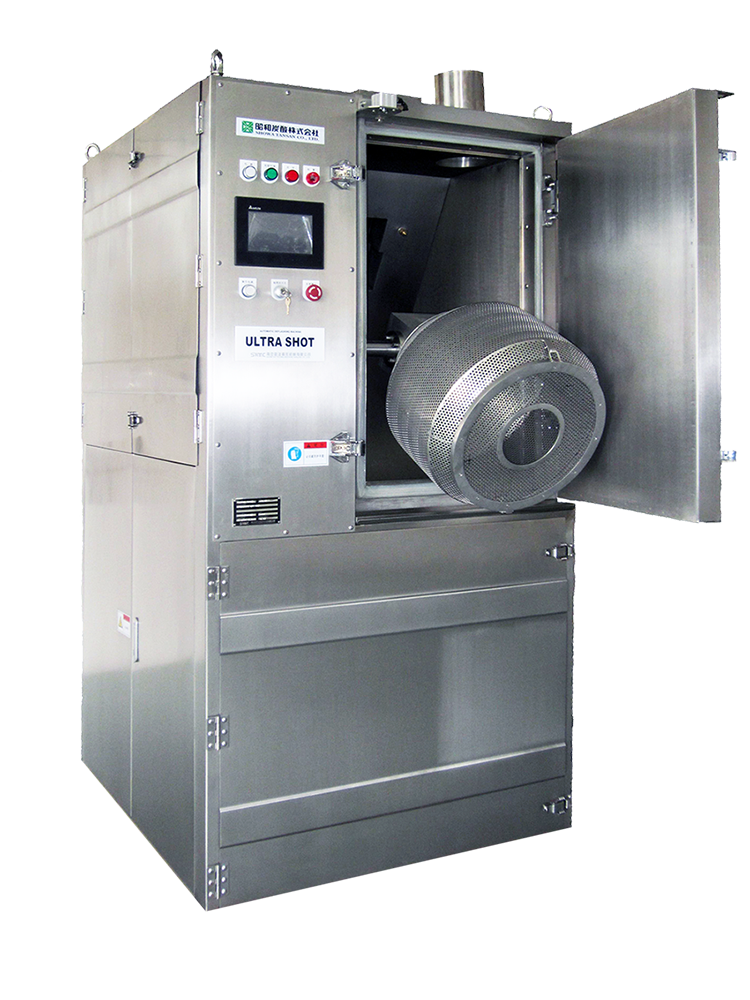

Ultra Shot® Cryogenic Deflashing Machine

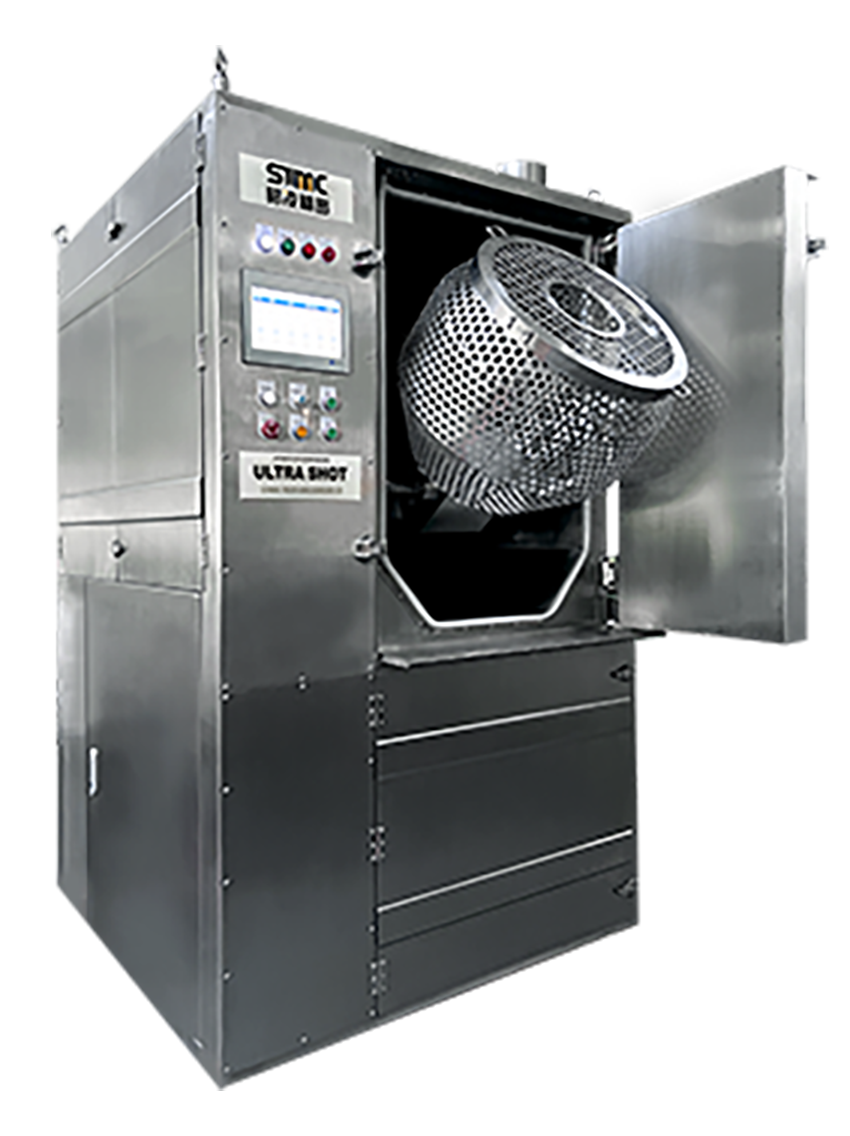

allows the operators to accurately set the operating temperature, projectile wheel speed, basket rotation speed and the processing time to remove the flash base on product condition; The program combination of solenoid valve and temperature regulator can automatically adjust the liquid nitrogen supply,so that the chamber is always at the optimum temperature for deflashing. The material basket applies rotating + flipping design, which is convenient for loading and makes the deflashing process more effective.

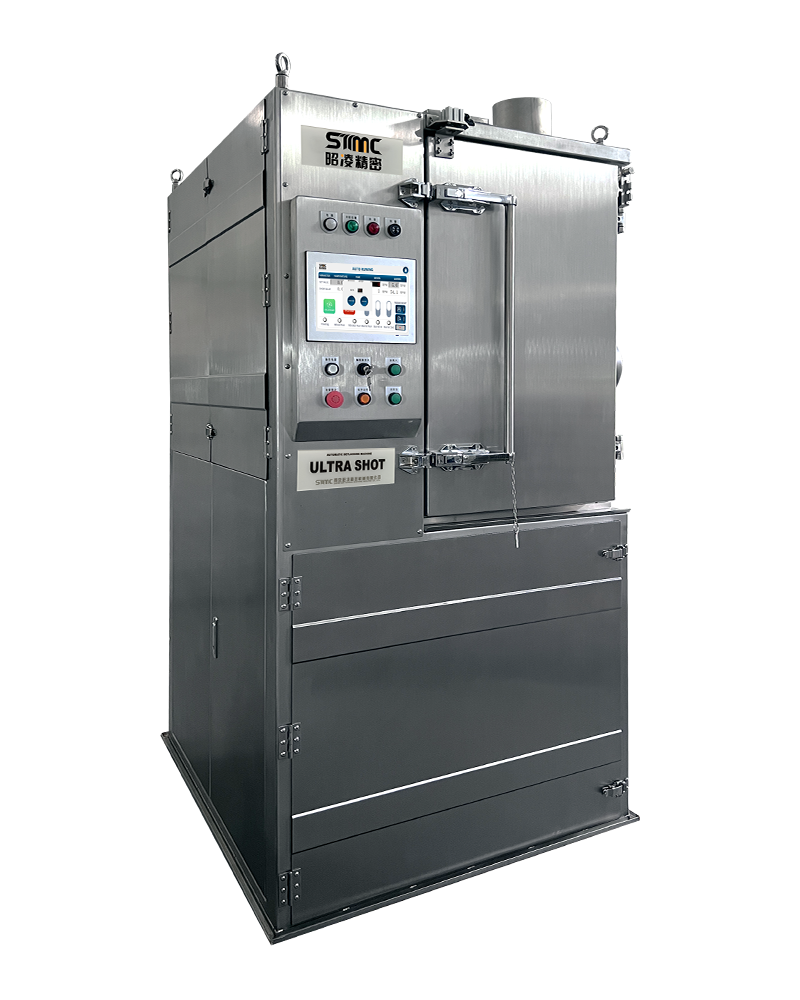

Ultra Shot® 60 Series

Ultra Shot® 120 Series

Ultra Shot® 160 Series

Explosion-proof Magnesium Alloy Series

Operating System Interface & Industrial Control Configuration

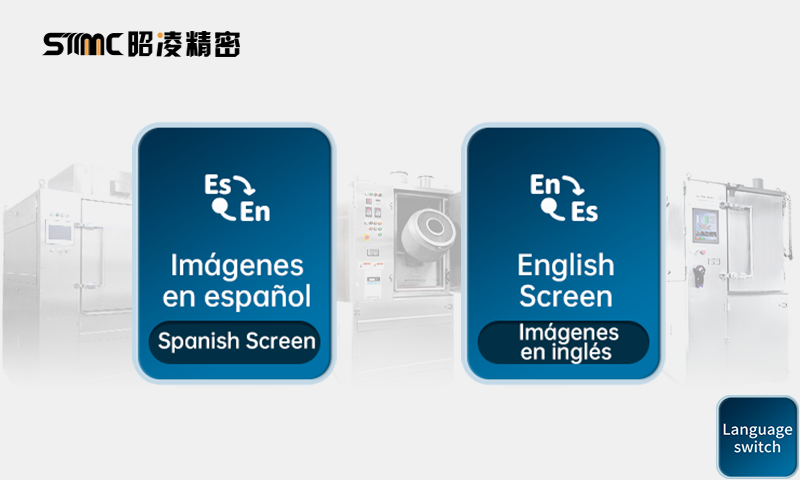

Home Screen

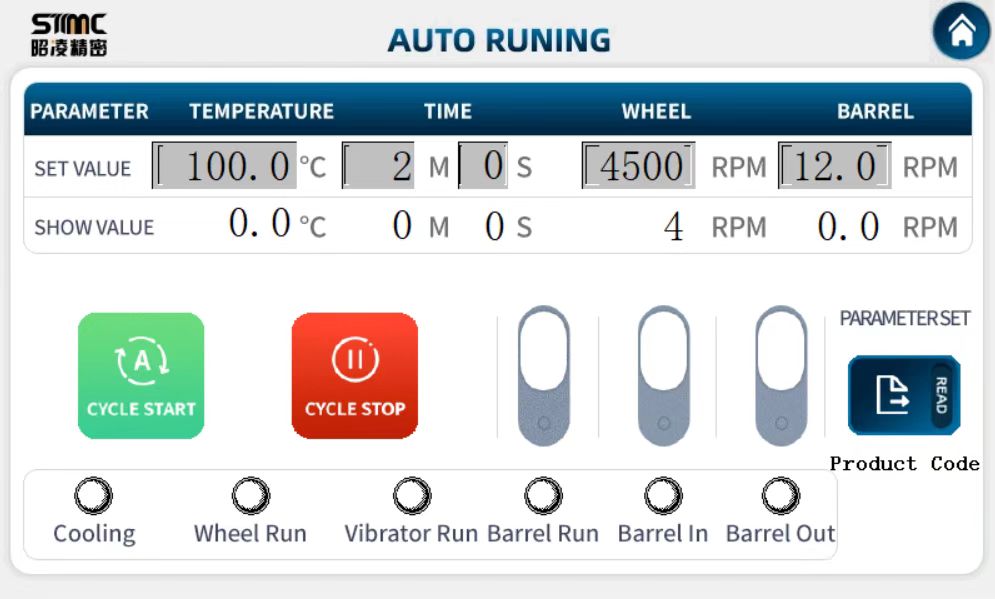

Automatic Mode

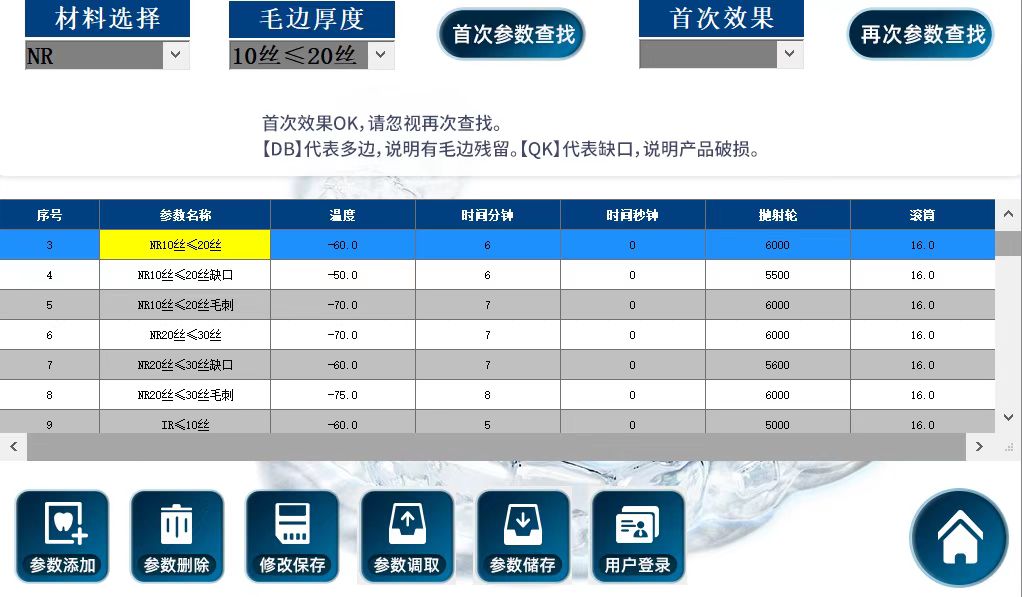

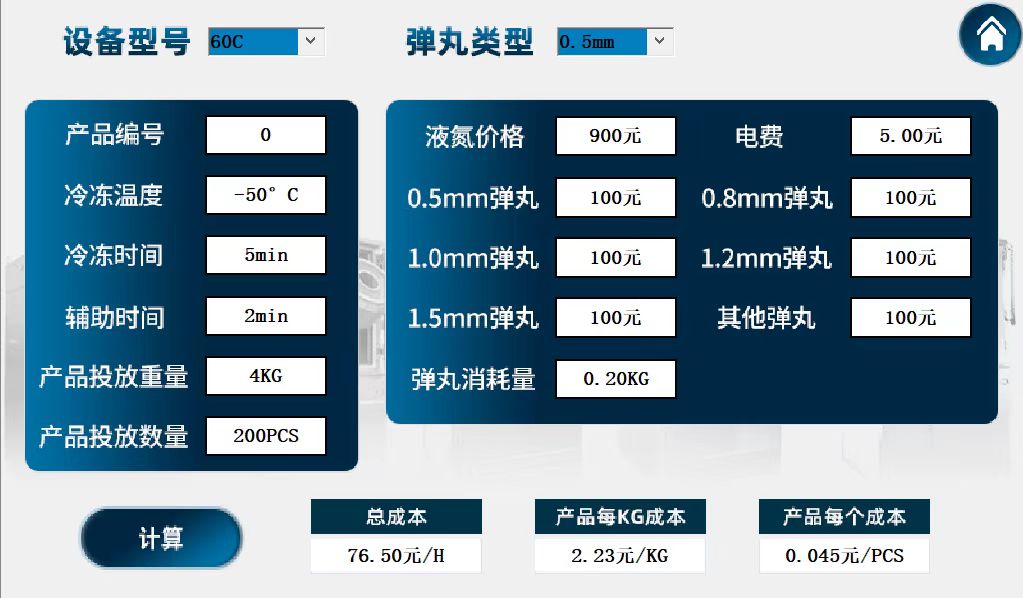

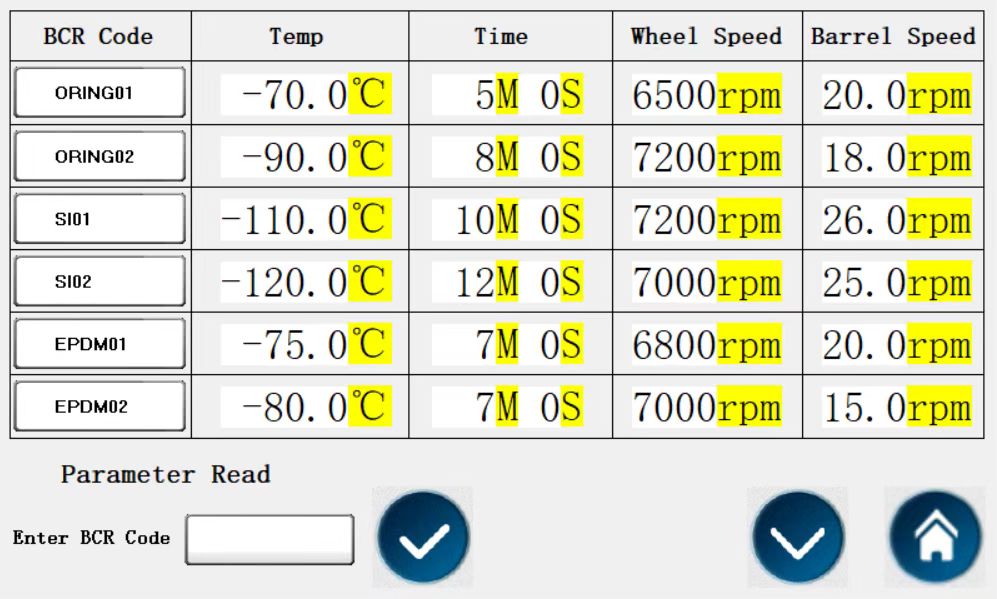

Parameter Database

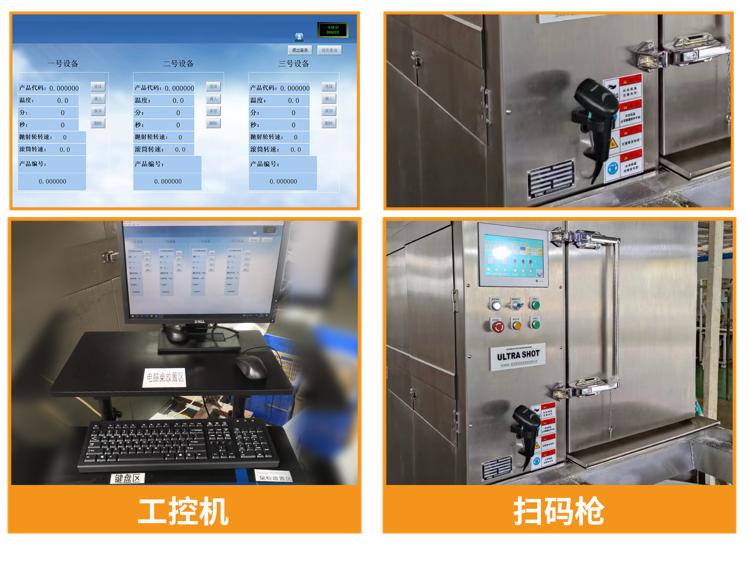

Industrial Control Configuration

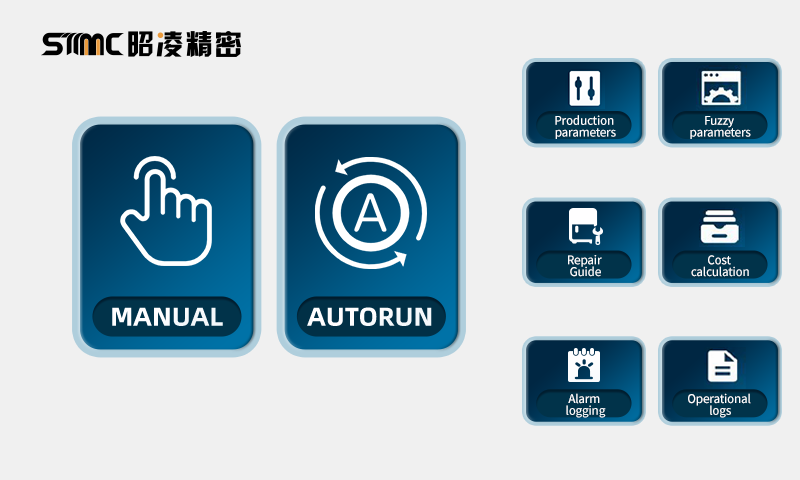

Operating Main Screen

Automatic Mode

Parameter Storage

Industrial Control Configuration

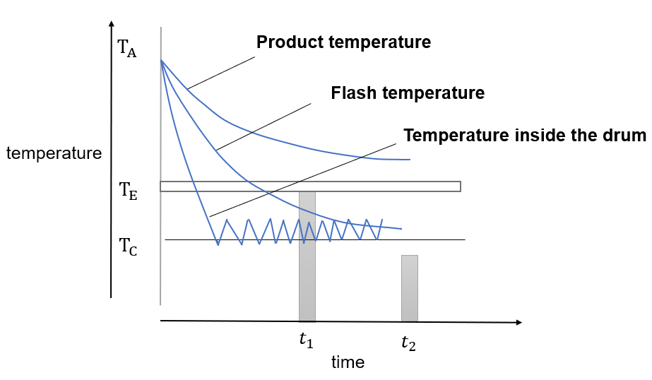

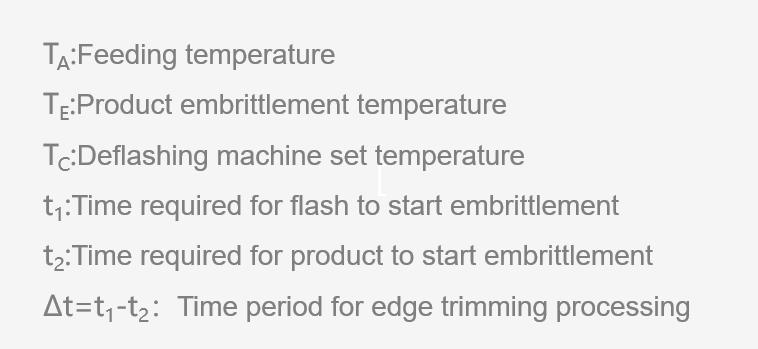

Working Principle

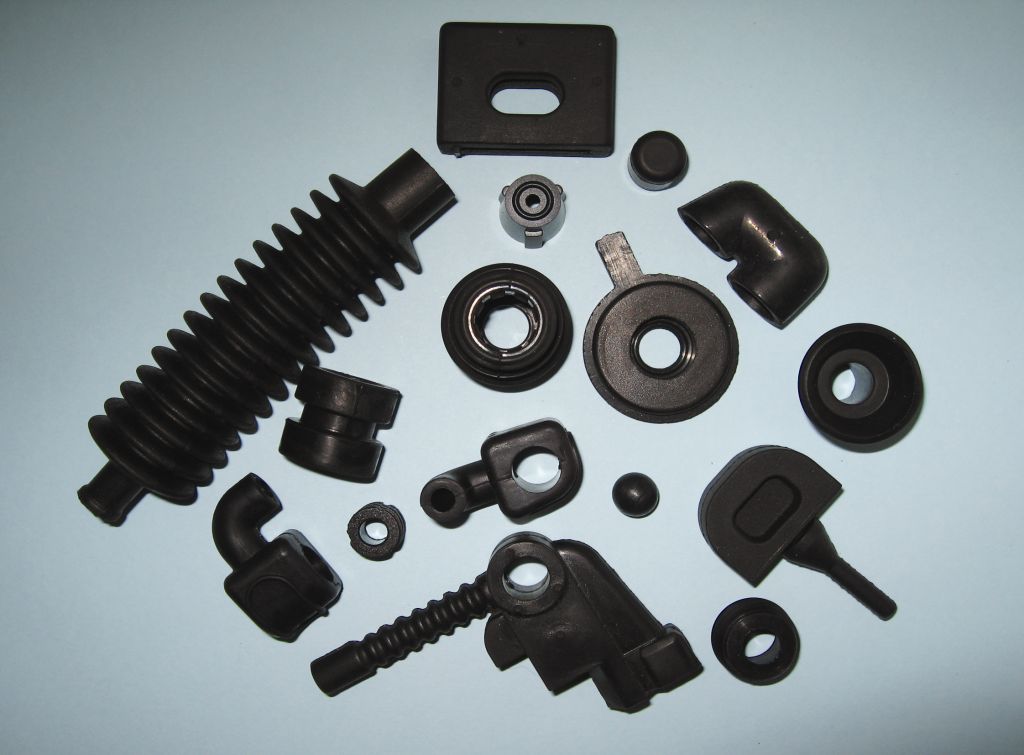

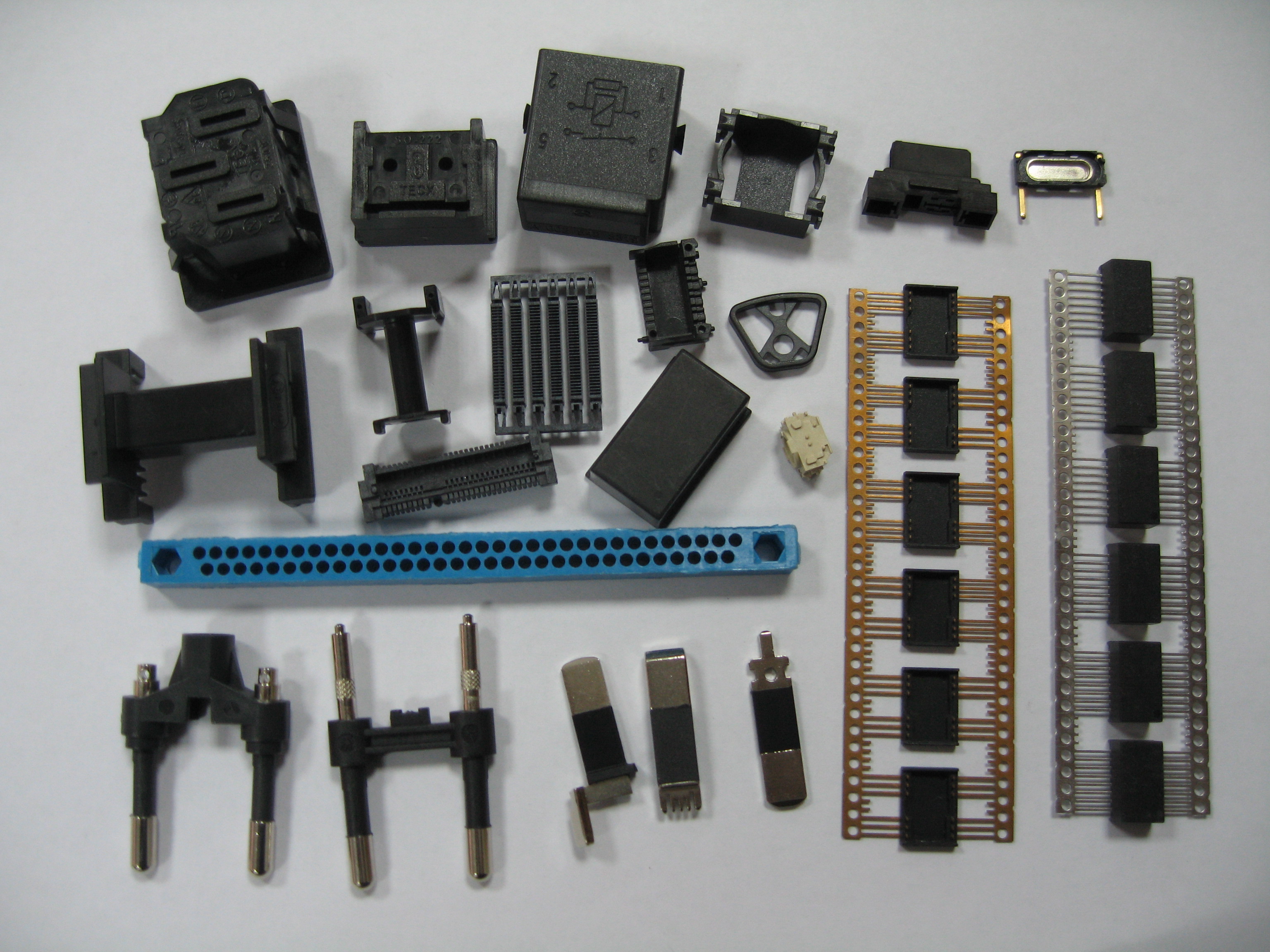

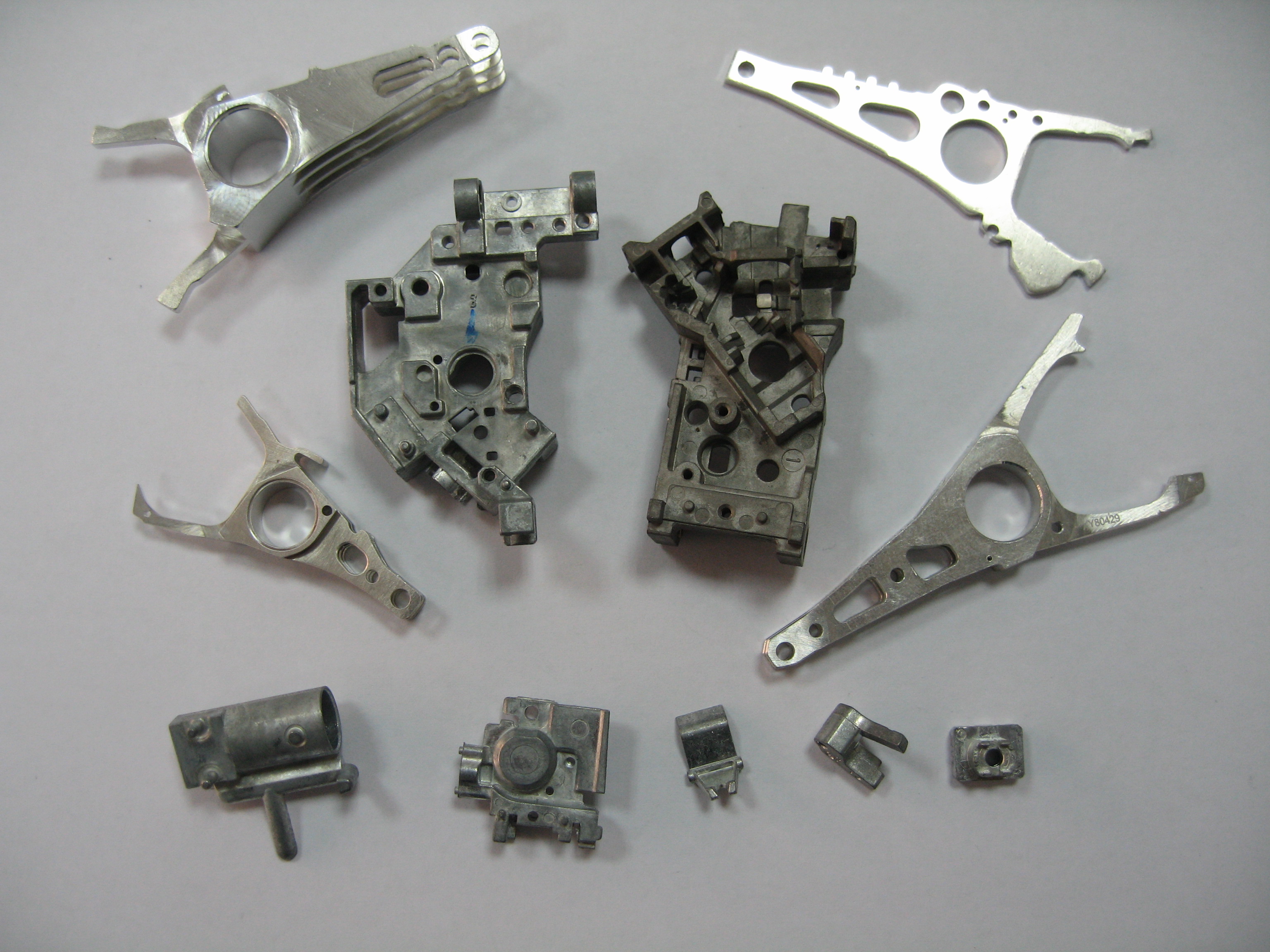

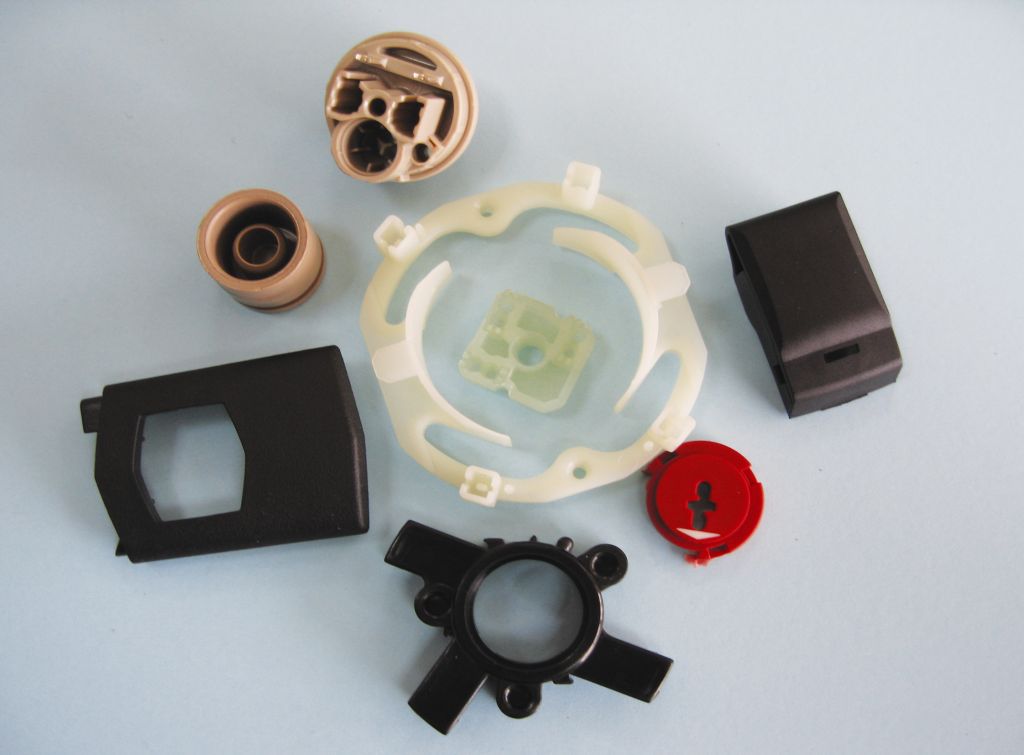

Rubber, injection molding, and zinc magnesium aluminum alloy products will turn into a hardening, embrittlement state as the temperature decreases, and gradually lose their elasticity. Especially below the embrittlement temperature, even slight force is applied to the material will cause it to shatter. At low temperatures, the flash around the product will embrittle before the product itself. Duringthe time when the flash embrittles and the product still has elasticity, high-speed spraying of special plastic pellets will impact the product, achieving the effect of removing the flash without damagine the product .

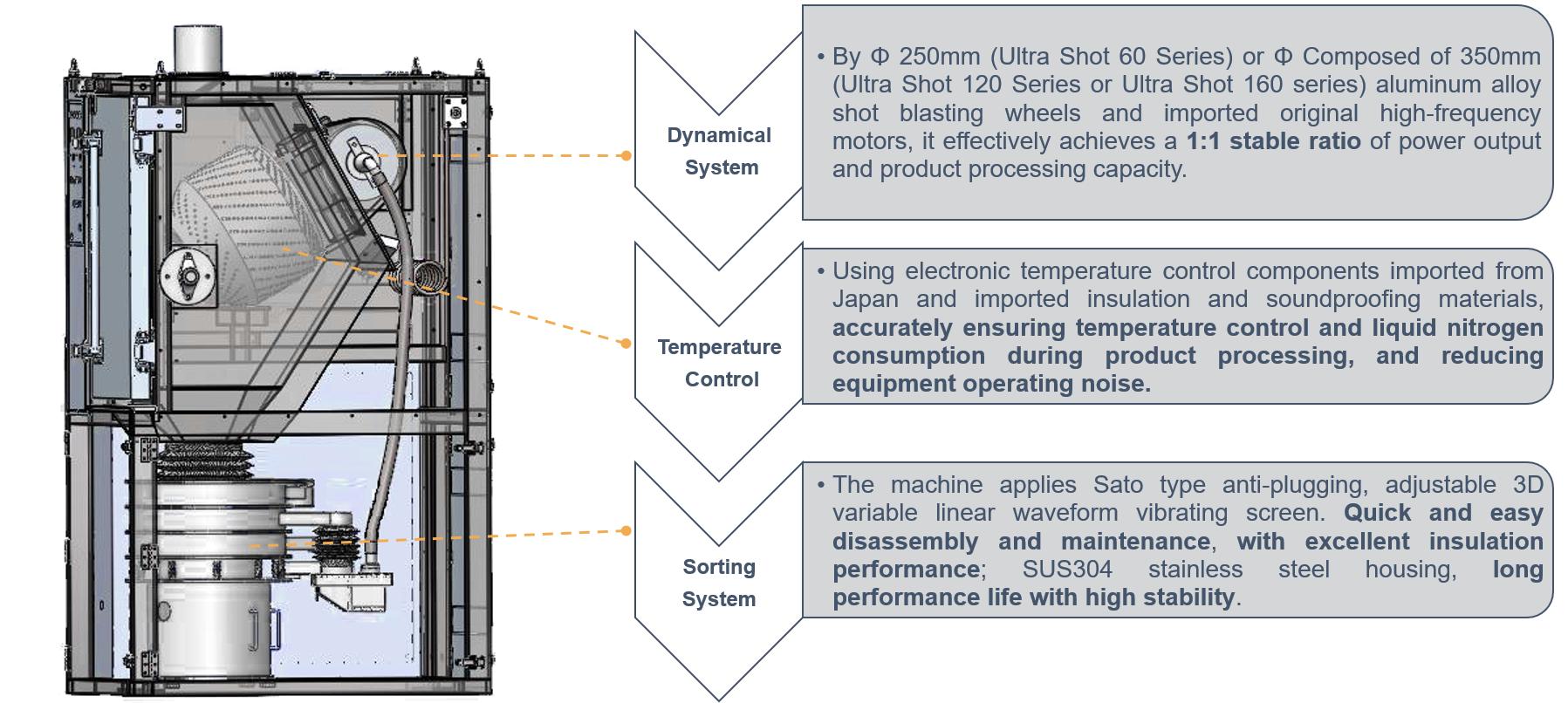

Internal Structure

STMC Advantage

Brand Origins

Originated from Japan's Showadenko Group 30 years of technology precipitation, 16 years of domestic manufacturing experience.

Competitive Cost

Excellent thermal insulation performance reduces the waste of liquid nitrogen. PIR insulation layer with better thermal insulation performance plus ultra-low temperature solenoid valve to reduce waste of liquid nitrogen and the operating cost.

Mature Technical Solution

All technical specifications are optimal designed including the projectile speed, projectile angle, basket shape, inclination angle and rotation.

More Effective Performance

The parts inside of the projectile circulation system are well sealed which makes the projectile system more powerful and the circulation more stable.

Reliable Safety Protection

The special door hinge on the machine can bear 0.5Mpa pressure. STMC uses special door handle imported from Japan on all cryogenic deflashing machine models which not only greatly simplify the opening of the chamber but also safer and reduce the consumption of liquid nitrogen.

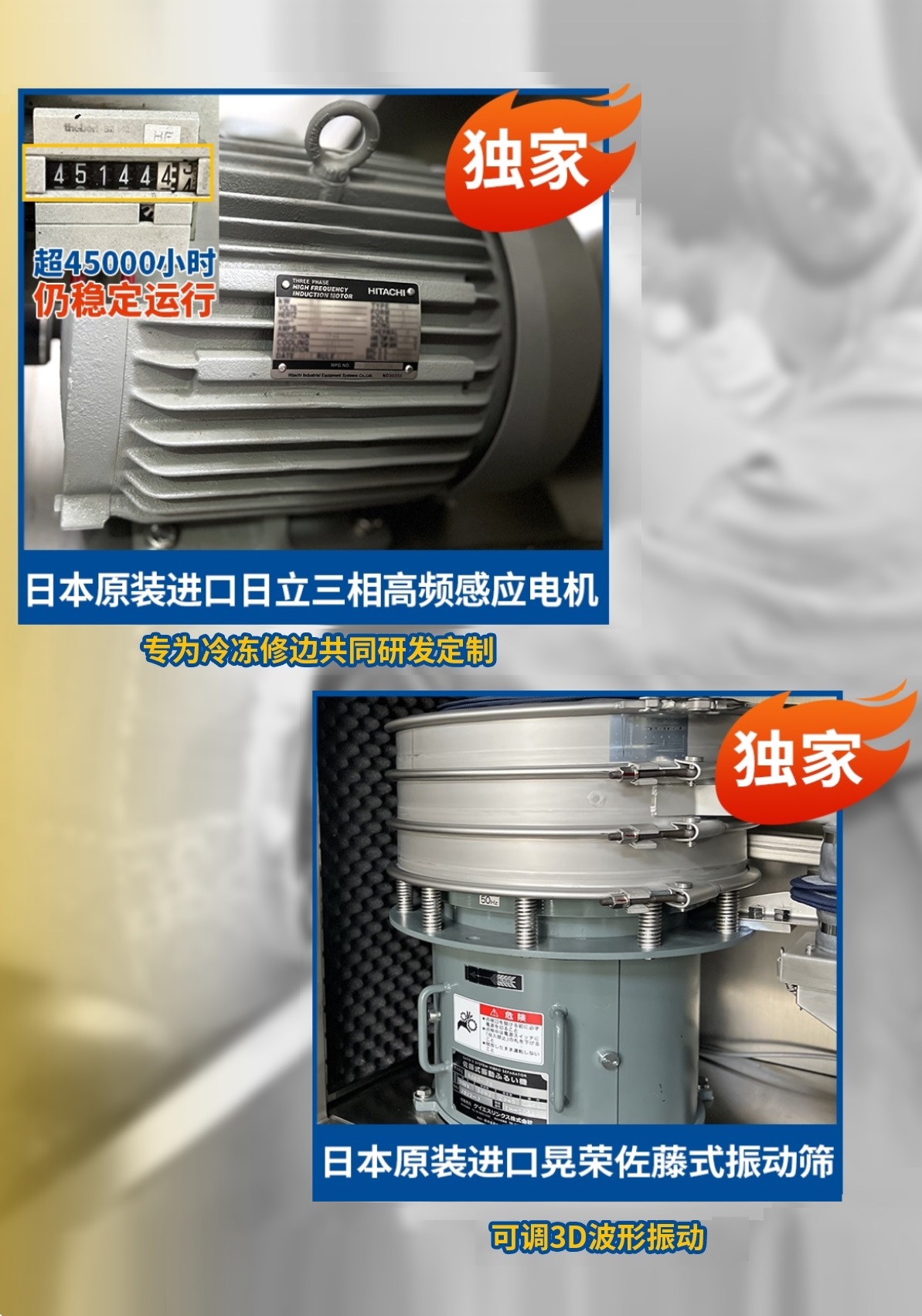

High Configuration Core Parts

The default core components are imported from Japan which have better performance and quality, they can also be replaced if German configuration is preferred, including Siemens motors (optional), frequency converter, PLC and touch screen.

Quality Management

ISO9000 quality management, over 800 incoming inspection, 30 assembling inspections, and 25 delivery inspections.

Full Service

Free product test and provide test report (including molding adjustment suggestions)
Experienced technical solution, 1 year (up to 2000 hours) warranty, spare parts guarantee supply for 10 years, remote response in less than 2 hours, 48 hours on-site service, 4 return visits per year.

ULTRA SHOT Cryogenic Deflashing Machine Made In & Imported From Japan

STMC can provide ULTRA SHOT cryogenic deflashing machine imported from Japan. The whole machine configuration can be customized by RESONAC Japan factory according to clients needs. The quality and performance of the machine refer to and comply with the factory standards of RESONAC Group.

· The whole machine is original made in/imported from Japan

· STMC provides pre-sales and post-sales service follow the standards and requirements of RESONAC Group.

Customize Development

Customize Development Process

Demand survey → Discussion between technical personnel on both sides → The development program plan → Project implementation → Project acceptance

Development Content

· According to the special needs of clients' products, design and provide customized configurations, special parts, and other supporting facilities to ensure the optimization of the performance;

· According to the needs of mobile management, STMC provides machine cloud data sharing , which shows real-time operation status of the machine, it allows operators to trace back and view operation records, receive equipment alarm information, and initiate remote technical assistance on the mobile devices;

· To meet the needs of Industry 4.0 which includes intelligent manufacturing and information management. STMC is able to provide customize and develop specific control system to realize date exchange with user's ERP or MES system, remote management, and cloud devices;
